Floor plan to 3D
Turn a 2D floor plan into a 3D cutaway or top-down render.

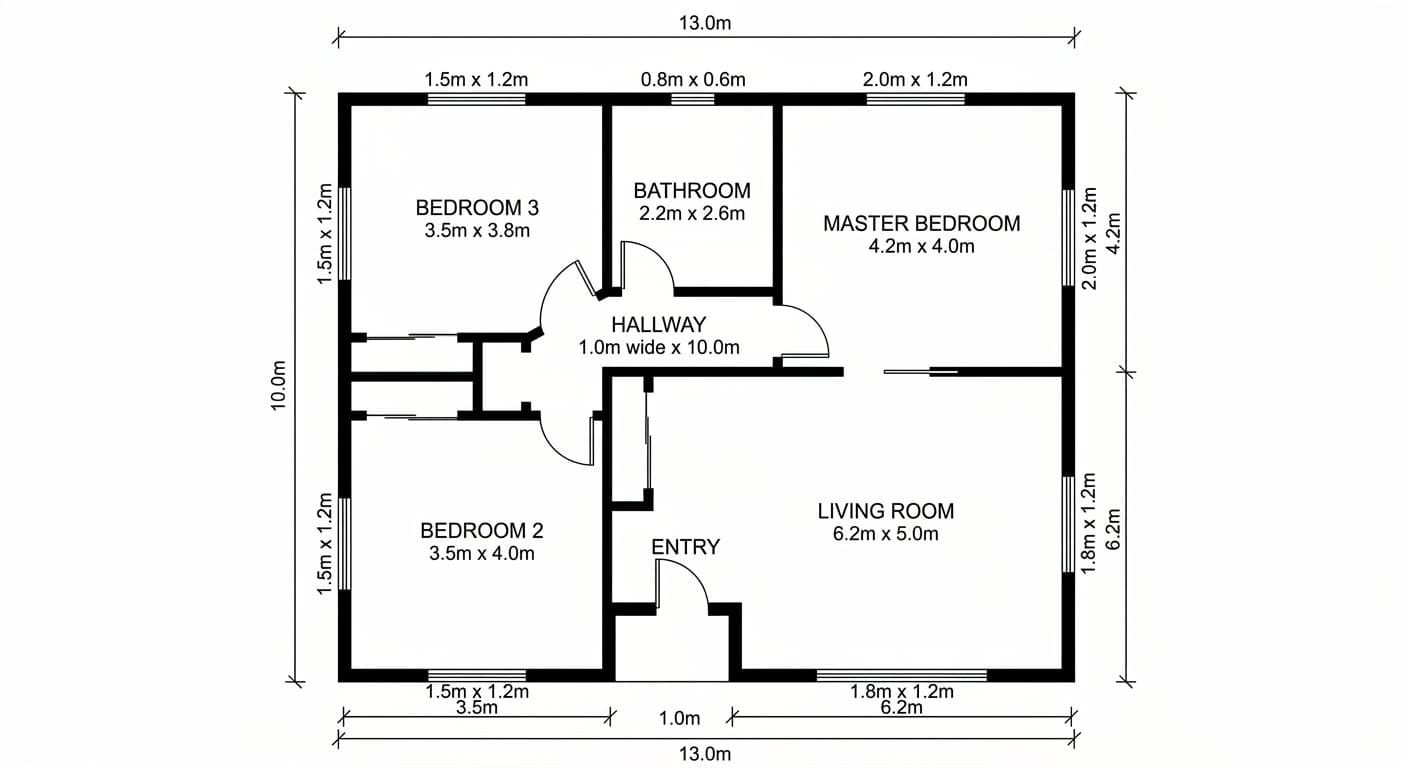

Floor plan to 3D builds a furnished (or empty) 3D model of a 2D floor plan and renders it either as an angled dollhouse cutaway or almost straight from above. It reads CAD exports, scans, listing plans, app scans and phone photos of hand drawings. Estate agents use it for listings; interior designers, architects, developers, hotels and furniture retailers use it to show a layout to someone who does not read plans.


Options
| Option | Type | Values | Default | Required | Description |
|---|---|---|---|---|---|
inputType | string | autoreal_estateasian_residentialcadmobile_scanhand_drawnblueprintother | real_estate | optional | How you would describe the drawing. A hint only — the drawing itself always wins. auto, real_estate (the default) and other add nothing, so leave it unless another value clearly fits. |
roomProgram | object | — | — | optional | The rooms you know the plan has; the model is told to build those rooms, each where the drawing places it. |
outputStyle | string | cutaway_isometricstylised_topdown | cutaway_isometric | optional | cutaway_isometric is an angled dollhouse view with the roof removed; stylised_topdown looks almost straight down. Also accepted as |
interiorStyle | string | modernscandinavianminimalistindustrialtraditionalluxury | modern | optional | Materials and furniture style. Also accepted as |
furnitureMode | string | furnishedempty | furnished | optional | empty renders the shell with the fixtures the drawing shows (counters, WC, bath). |
fp3dOutdoor | string | as_drawnbuilding_only | as_drawn | optional | as_drawn builds balconies, terraces, pools and parking only where the drawing shows them; building_only stops the model at the outer walls. |
fp3dLabels | string | noneroom_names | none | optional | room_names places the drawing's own room names on the floors, copied as written (a name the model cannot read is left out). Areas and dimensions are not added. |
Every option except roomProgram has a default, so a request with no options renders a
furnished modern cutaway with no text, and builds balconies, terraces, pools and parking only
where the plan draws them.
Example
{
"tool": "floor-plan-to-3d",
"image_url": "https://example.com/apartment-plan.png",
"options": {
"outputStyle": "stylised_topdown",
"interiorStyle": "scandinavian",
"furnitureMode": "furnished",
"fp3dLabels": "room_names"
}
}Room program
If you know what the plan contains, send it as roomProgram, and the model is told to build
those rooms, each where the drawing places it:
{
"tool": "floor-plan-to-3d",
"image_url": "https://example.com/house-plan.png",
"options": {
"roomProgram": {
"building": "house",
"floorsShown": 2,
"rooms": { "bedroom": 3, "bathroom": 2, "wc": 1, "open_plan_living": 1, "garage": 1 }
}
}
}| Key | Values |
|---|---|
building | house, apartment or office. Optional. |
floorsShown | How many floors the drawing shows, 1 to 4 (default 1). With more than one, the room counts are totals. |
rooms | Room counts, whole numbers from 0 to 20, at least one above 0: bedroom, bathroom, wc (a separate WC), kitchen, living_room, dining_room, open_plan_living, hallway, storage, balcony (a balcony or terrace), office, laundry, garage. |
open_plan_livingis a kitchen, dining room and living room that are one open space. Count it instead ofkitchen,living_roomanddining_room: a program that counts it next to any of them is rejected withinvalid_request.- List every room you know of. The model is told not to add, merge or drop rooms, and to keep every other room or space the drawing shows — halls, stairs, a dressing room — as drawn. The list guides the render but does not guarantee it: a room can still come back merged, missing or put to another use, so check the render against the plan.
- With
furnitureModeemptythe rooms are built without furniture. roomProgramis read in the guided and custom tiers;tierautoignores it. A malformed one — an unknown key or room type, a count out of range, no room counted,open_plan_livingnext to a room it replaces — is rejected withinvalid_request, and nothing is charged.
Accepted aliases
Two keys that integrators commonly guess are accepted and mapped onto the real options:
| You send | It becomes |
|---|---|
view: topdown, top_down or overhead | outputStyle: stylised_topdown |
view: isometric or dollhouse | outputStyle: cutaway_isometric |
style: one of the interiorStyle values | interiorStyle: that value |
When you send both an alias and the option it maps to, the option wins. A view outside the
list above is rejected with invalid_request. A style that is not an interiorStyle value
(for example farmhouse) is ignored — describe that look with tier custom instead.
A look of your own
For a style outside the six presets, set tier to custom and describe it in
customPrompt (at most 500 characters). Your text sets the materials, colours, furniture and
lighting and takes the place of interiorStyle; rooms your text says nothing about are
furnished simply for their use. Send furnitureMode empty as well to keep an empty shell.
outputStyle, fp3dOutdoor and fp3dLabels still apply, and so do the layout rules below:
the model is told that your text never changes the layout, walls or openings.
{
"tool": "floor-plan-to-3d",
"image_url": "https://example.com/cottage-plan.jpg",
"options": {
"tier": "custom",
"outputStyle": "cutaway_isometric",
"customPrompt": "Farmhouse interior: dark carved wooden furniture, exposed brick walls, terracotta and timber floors, potted plants, warm table and floor lamps."
}
}What the model is told to keep
- Walls where they are drawn, with rooms neither merged nor split. Slight angles can still come back straight, so check the render against the plan.
- Doors, windows, stairs, lifts and columns only where the plan shows them.
- Room names, areas, dimensions, legends, title blocks and watermarks are read, never built
as objects. With
fp3dLabelsroom_names, the room names are copied onto the floors as written, and a name the model cannot read is left out; areas and dimensions are not added. Text in a render is drawn by the model, so check it before you publish. - Plain margins and letterbox bars around the plan are trimmed before rendering, so the plan fills the frame. Crop title blocks and other floors out yourself for the best result.
inputType is only a hint about what the drawing is. The model reads the drawing itself:
auto, real_estate (the default) and other add no hint at all, so leave it out unless
another value clearly fits.
When the image is not a floor plan
Some jobs of this tool first check that the image is a floor plan. When the check finds it is
not — a photo of a room or a street, say — the job ends without a render: status is failed,
error is "The image does not look like a floor plan or a drawing we can read, so nothing was
drawn." and the credits are refunded. Sending the same image again will not help.
The check runs on some jobs only, and it looks for images that are not plans at all: a faint, blurry or partial plan is rendered as usual. An image that is rendered is charged like any other, whatever it shows, so send floor plans, drawings or scans of them only, cropped to the plan if the page holds other drawings.
Next steps
- Tools — the rest of the tools and the common options.
- Quickstart — send this request end to end.
